Mini ConcreteBatching Plant

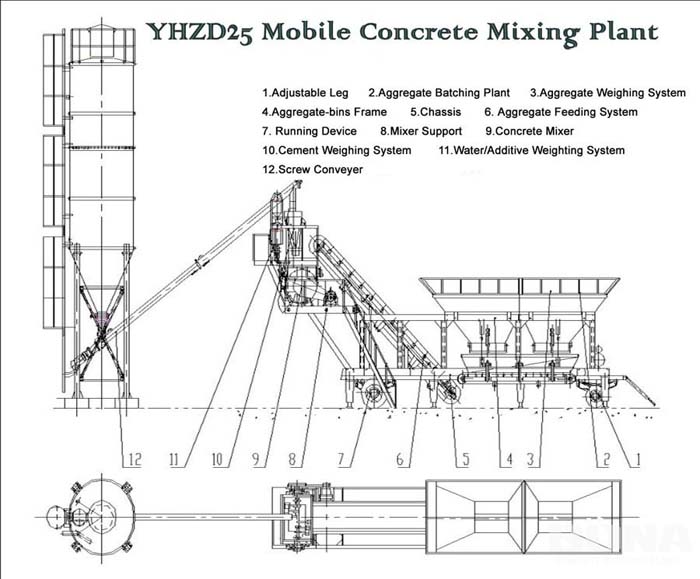

YHZS25 mini mobile concrete plant

Haomei YHZS25 mini mobile concrete plant 25m3/h belongs to the small concrete plant type or mini concrete plant type, this production line has a best selling market in construction fields.Compared with mobile batching plant and mini cement plant, our mini batching plants has excellent mobility and portability at the same time. With high produce efficiency, our YHZS25 mini mobile concrete plant is widely used in highway, railway, municipal, bridges, ports, hydro power construction and other concrete construction projects for mixing dry, semi-sexual and plastic concrete.

Specifications

Specification		Unit	Value
Theoretical productivity		m3/h	25
Weighing scale	Concrete	Kg	2000
	Cement	Kg	510
	Water	Kg	150
	Liquid addictive	Kg	15
Overall power		KW	about 60 (optional parts not included)
Power source		V/ HZ	380/50
Discharging height		M	3.8
Overall weight		T	20 (optional parts not included)
Trail speed		km/h	≤40
Specification (LxWxH)	During work	M	17x3.6x8.2
	During transportation	M	17.6x2.4x4.35

what is the main Features and Advantages of this mini Mobile Concrete Plant?

1. This 25m3/h mini mobile concrete plant yhzs25 has the best selling market around the world.
2. It is a new type concrete plant yhzs25 which is movable by trailing with capacity as 25m3/h, which can satisfy the basic small volume capacity.
3. yhzs25 mini mobile concrete plant belongs to the fully automatic control.
4. New type of trailerable production line.
