Mini Concrete Plant
We provide Mini Concrete Plant on well-defined parameters of quality such as Strength, Capacity, and Functionality.With the Mini Batching Plant, your operation will be more efficient. Your concrete costs will decrease and you will also find a savings in labour costs. You will now be able to control when and where you produce concrete.
We are providing diffirent types of Mini Batching Plant.mini concrete plants include mobile type YHZS25, YHZS35, YHZS50 and stationary type such as HZS25, HZS35, HZS50
Mini Mobile Batching Plant:
YHZS25 mini mobile concrete plant
Concrete mixer: JS500
Theoretical production capacity (m³/h): 25
Discharging capacity (L): 500
Discharging height: (M): 2.8
YHZS35 mini concrete plant
Concrete mixer: JS750
Theoretical production capacity (m³/h): 35
Discharging capacity (L): 750
Discharging height: (M): 2.8

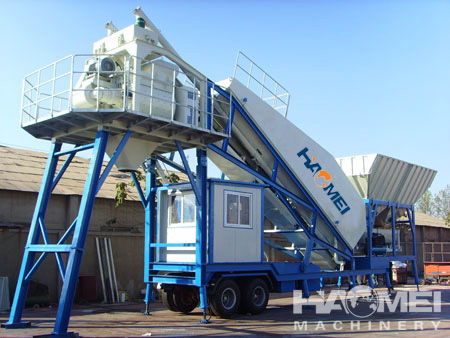

YHZS50 mini mobile concrete plant
Concrete mixer: JS1000
Theoretical production capacity (m³/h): 50
Discharging capacity (L): 1000
Discharging height: (M): 2.8
Specifications of Mini Mobile Batching Plant:
| Type | YHZS25 | YHZS35 | YHZS50 | |
| Theoretical production capacity(m³/h) | 25 | 35 | 50 | |
| Concrete mixer | Type | JS500 | JS750 | JS1000 |
| Power(KW) | 24.75 | 38.6 | 51 | |
| Discharging capacity(L) | 500 | 750 | 1000 | |
| Aggregate size(Pebble/Macadam)(mm) | 80/60 | 80/60 | 80/60 | |
| Aggregate Bin volume(m³) | 3.2 | 7.3 | 8.3 | |
| Weighing Accuracy | Aggregate (KG) | ±2% | ±2% | ±2% |
| Cement(KG) | ±1% | ±1% | ±1% | |
| Fly ash(KG) | ±1% | |||
| Water (KG) | ±1% | ±1% | ±1% | |
| Additive(KG) | ±1% | ±1% | ±1% | |
| Total power(KW) | 50Kw | 64Kw | 85Kw | |
| Discharging height(M) | 2.8 m | 2.8 m | 2.8 m | |
| Gross weight(T) | 12 | 16 | 20 | |
Mini Stationary concrete plant:

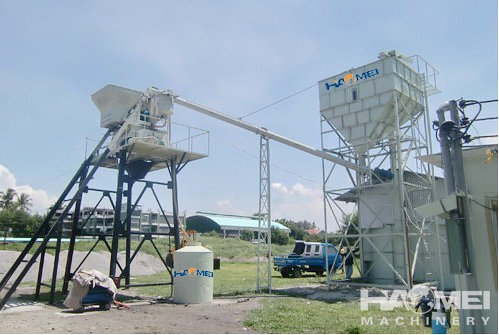

HZS25 mini stationary batching plant
Theoretical production capacity (m³/h): 25
Concrete mixer: JS500
Discharging capacity (L): 500
Discharging height: (M): 3.8
HZS35 mini stationary batching plant
Concrete mixer: JS750
Theoretical production capacity (m³/h): 35
Discharging capacity (L): 750
Discharging height: (M): 3.8

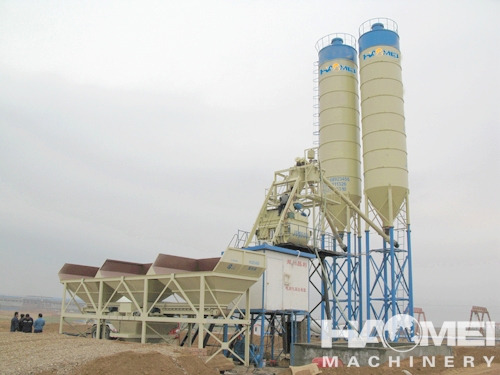

HZS50 mini stationary batching plant
>Concrete mixer: JS1000
Theoretical production capacity (m³/h): 50
Discharging capacity (L): 1000
Discharging height: (M): 3.8
Specifications of mini stationary concrete plant
| Type | HZS25 | HZS35 | HZS50 | |
| Theoretical production capacity(m3/h) | 25 | 35 | 50 | |
| Concrete mixer | Type | JS500 | JS750 | JS1000 |
| Power(KW) | 24.75 | 38.6 | 51 | |
| Discharging capacity(L) | 500 | 750 | 1000 | |
| Aggregate size(mm) | 80/60 | 80/60 | 80/60 | |
| Aggregate Bin volume(m3) | 3.2 | 7.3 | 8.3 | |
| Weighing Accuracy | Aggregate (KG) | 1500Kg ±2% | 2200Kg ±2% | 3000Kg ±2% |
| Cement(KG) | 300Kg ±1% | 450Kg ±1% | 600Kg ±1% | |
| Fly ash(KG) | 400Kg ±1% | |||
| Water (KG) | 200Kg ±1% | 200Kg ±1% | 400Kg ±1% | |
| Additive(KG) | 30Kg ±1% | 50Kg ±1% | ||
| Total power(KW) | 45Kw | 60Kw | 115Kw | |
| Discharging height(M) | 3.8 m | 3.8 m | 3.8 m | |
| Gross weight(T) | 7.7 | 15 | 40 | |
Wide Applications of Mini Concrete Plant
Mini batching plant is quite suitable for small and flexible construction project, for example, the construction of highway, bridge, power station, dam construction and so on. It can be used together with dump truck, self-loading truck, and truck. According to the special requirements of different users, small concrete mixer can be restructured to meet the needs of different requirements. It can be used alone, also used as a supporting host for the mixing station.
Main components of mini concrete batching plant:
Mini mobile concrete batching plant is similar with other concrete mixing plant. It is also a combination of batching station, belt conveyor, cement silo, screw conveyor, concrete mixer, weighing system, water and air supply system, control system and so on
